Air Hose

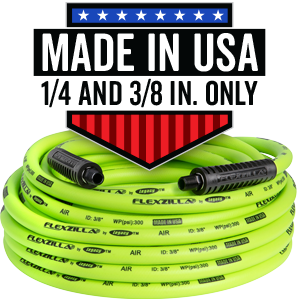

Flexzilla® is a revolutionary hose featuring a Flexible Hybrid Polymer material that redefines flexibility. This engineered polymer-blend material permits use in environments where general purpose PVC and rubber hose may become too stiff. Flexzilla hose characteristics offer zero memory allowing it to lay flat. It won’t work against you during operation and coils easily after use. Flexzilla offers extreme all-weather flexibility, even in subzero conditions, and is ideal in both hot and cold environments where tight radius bends are needed.
Features:
- Extreme all-weather flexibility, even in subzero temperatures (-40° to 140°F)
- Won’t kink under pressure
- Lightweight and easy to handle
- Lays flat – no memory
- Durable and abrasion-resistant outer cover
- Anodized aircraft aluminum ends
- Max. working pressure at 70°F: 300 psi
- Includes bend restrictors to reduce wear and tear, prolonging the life of the hose
Videos
Product Choices
Flexzilla® Air Hose is available in a wide variety of lengths, dimensions and fittings to meet all your needs.
|
Part No. |
Hose Length |
Hose I.D. |
Fittings |
Assembled in USA |
|
HFZ1425YW2 |
25 ft. |
1/4 in. |
1/4 in. MNPT |
✓ |
|
HFZ1450YW2 |
50 ft. |
1/4 in. |
1/4 in. MNPT |
✓ |
|
HFZ14100YW2 |
100 ft. |
1/4 in. |
1/4 in. MNPT |
✓ |
|
HFZ14100YW2-3X |
100 ft. |
1/4 in. |
1/4 in. MNPT |
✓ |
|
HFZ3825YW2 |
25 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ3825YW2-5X |
25 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ3835YW2 |
35 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ3850YW2 |
50 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ3850YW2-3X |
50 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ3850YW3 |
50 ft. |
3/8 in. |
3/8 in. MNPT |
✓ |
|
HFZ38100YW2 |
100 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZ1225YW3 |
25 ft. |
1/2 in. |
3/8 in. MNPT |
|
|
HFZ1250YW3 |
50 ft. |
1/2 in. |
3/8 in. MNPT |
|
|
HFZ12100YW3 |
100 ft. |
1/2 in. |
3/8 in. MNPT |
|
|
HFZ1250YW4 |
50 ft. |
1/2 in. |
1/2 in. MNPT |
|
|
HFZ12100YW4 |
100 ft. |
1/2 in. |
1/2 in. MNPT |
|
Part nos. with a -3X or -5X suffix include 3 or 5 hose assemblies respectively in a retail merchandiser display and must be ordered in standard pack quantities.
Air Hose Kit
This convenient hose kit features the revolutionary Flexzilla® air hose paired with a Red Industrial (Type D) 1/4 in. body ColorConnex® coupler and plug set (one each). Combining Flexzilla’s revolutionary design and the convenient color coding of ColorConnex, you get two great products in one. Plus, since thread sealer is already installed on the coupler and plug, you’re ready to go as soon as you reach the jobsite.
Kit Includes
- A – Flexzilla® Air Hose
- B – ColorConnex Red Industrial (Type D)
Coupler and Plug - C – Pre-Sealed Threads
|
Part No. |
Hose Length |
Hose I.D. |
Fittings |
|
|
HFZ1425YW2-D |
25 ft. |
1/4 in. |
1/4 in. MNPT |
|
|
HFZ1450YW2-D |
50 ft. |
1/4 in. |
1/4 in. MNPT |
|
|
HFZ14100YW2-D |
100 ft. |
1/4 in. |
1/4 in. MNPT |
|
|
HFZ3825YW2-D |
25 ft. |
3/8 in. |
1/4 in. MNPT |
|
|
HFZ3835YW2-D |
35 ft. |
3/8 in. |
1/4 in. MNPT |
|
|
HFZ3850YW2-D |
50 ft. |
3/8 in. |
1/4 in. MNPT |
|
|
HFZ38100YW2-D |
100 ft. |
3/8 in. |
1/4 in. MNPT |
11 Piece Air Compressor Kit
This convenient air compressor kit features Flexzilla® Air Hose with a red industrial (Type D) 3/8 in. body ColorConnex® couplers and plugs. Pairing Flexzilla’s revolutionary design with color-coded ColorConnex means two great products in one.
Kit Includes:
- A – (1) Flexzilla® Air Hose, 50 ft. x 3/8 in.
- B – (1) Blow Gun with safety tip
- C – (1) Ball Foot Chuck
- D – (1) Pencil Tire Pressure Gauge (10 to 100 psi)
- E – (1) Coupler, 1/4 in. FNPT
- F – (1) Coupler, 1/4 in. MNPT
- G – (2) Plugs, 1/4 in. FNPT
- H – (3) Plugs, 1/4 in. MNPT
• Patented ColorConnex® Red Industrial (Type D) Coupler & Plug allows color-to-color matching of couplers and plugs in standard pneumatic interchanges, to avoid mixing up a lubricated line with a dry line.
|
Part No. |
Hose Length |
Hose I.D. |
Fittings |
Assembled in USA |
|
HFZCLB11D |
50 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
|
HFZCLB11D-3X |
50 ft. |
3/8 in. |
1/4 in. MNPT |
✓ |
HFZCLB11D-3X includes 3 hose assemblies in a retail merchandiser display and must be ordered in standard pack quantities.
